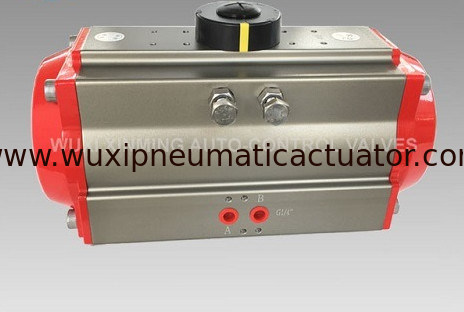

High performance 90 degree DA/SR rack and pinion pneumatic actuator

Basic Information
Place of Origin: Jiangsu, China
Brand Name: xm
Certification: CE,ATEX,ISO,SGS
Model Number: DA,SR
Minimum Order Quantity: 20
Packaging Details: 1) foam packing inside,one carton box outside 2) then put all carton box in one strong plywood case for sea transport
Delivery Time: 3-15days
Supply Ability: 5000 sets per month
Contact Now
Metarial: Extruded Aluminum Alloy Colour: Black, Gray, Blue, Or As Customers' Requirement
Application: Ball Valve, Butterfly Valve Connection: ISO 5211,DIN 3337
Structure: Rack And Pinion Type: Double Action And Single Action
Power: Air Pressure

High performance 90 degree DA/SR rack and pinion pneumatic actuator



Pneumatic Actuator

Material Extruded Aluminum alloy
Rotary Angle 0~90 degree
Structure rack and pinion rotary actuator
Working Pressure 2~8bar
Surface Treatment hard anodizing
Working Temperature Normal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F);

High Temperature: -15ºC(+5°F) ~ 150ºC (+302°F);

Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F).
Connection NAMUR, ISO5211 and DIN3337
Application ball valve, butterfly valve, and rotary machine
Cup Color grey, black, sky blue, dark blue, red, orange



High performance 90 degree DA/SR rack and pinion pneumatic actuator 0

 High performance 90 degree DA/SR rack and pinion pneumatic actuator 1High performance 90 degree DA/SR rack and pinion pneumatic actuator 2



Main Features

-1). Our design, material and size are definitely accord with ISO9001:2008, CE Certificate and ATEX Certificate.
-2). Our piston is treated thermal quenching to obtain better strength and prolong using life.
-3). The surface of our actuator body is treated hard anoidizing to against rust and scratch.

-4). We provide with OEM service

-5). Strict quality control
-6). Better quality at a better price
-7). Excellent After-service.
-8). Fast delivery time




High performance 90 degree DA/SR rack and pinion pneumatic actuator 3
