Home ProductsRack & Pinion Pneumatic Actuator

valves pneumatic rotary rack and pinion actuator black body orange caps colour

Certification
Good quality Pneumatic Rotary Actuator for sales
Good quality Pneumatic Rotary Actuator for sales
I'm Online Chat Now

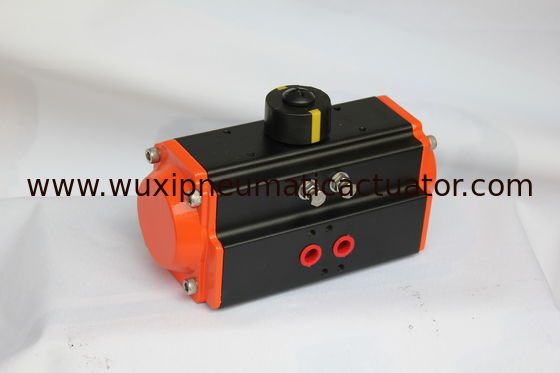

valves pneumatic rotary rack and pinion actuator black body orange caps colour

China valves pneumatic rotary rack and pinion actuator black body orange caps colour supplier
valves pneumatic rotary rack and pinion actuator black body orange caps colour supplier valves pneumatic rotary rack and pinion actuator black body orange caps colour supplier

Large Image :  valves pneumatic rotary rack and pinion actuator black body orange caps colour

Product Details:

Place of Origin: Jiangsu, China
Brand Name: OEM
Certification: CE,ATEX,ISO,SGS
Model Number: DA,SR

Payment & Shipping Terms:

Minimum Order Quantity: 20
Packaging Details: 1) foam packing inside,one carton box outside 2) then put all carton box in one strong plywood case for sea transport
Delivery Time: 3-15days
Payment Terms: T/T
Supply Ability: 5000 sets per month
Contact Now
Detailed Product Description
Metarial: Extruded Aluminum Alloy Colour: Black, Gray, Blue, Or As Customers' Requirement
Application: Ball Valve, Butterfly Valve Connection: ISO 5211,DIN 3337
Structure: Rack And Pinion Type: Double Action And Single Action
Product Name: Valves Pneumatic Rotary Rack And Pinion Actuator Black Body Orange Caps Colour Size: 32 To 400

valves pneumatic rotary rack and pinion actuator black body orange caps colour



Pneumatic actuator


Material Extruded Aluminum alloy
Rotary Angle 0~90 degree
Structure rack and pinion rotary actuator
Working Pressure 2~8bar
Surface Treatment hard anodizing
Working Temperature Normal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F);

High Temperature: -15ºC(+5°F) ~ 150ºC (+302°F);

Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F).
Connection NAMUR, ISO5211 and DIN3337
Application ball valve, butterfly valve, and rotary machine
Cup Color grey, black, sky blue, dark blue, red, orange





Main Features



Pneumatic rotary actuator are greatly used in ball valve and butterfly valve.

Low cost, compact design, long working life.

Pneumatic actuator type: single acting (spring return) or double acting.

Color: orange, blue, black, dark gray. we accept OEM colors and brand.

Pneumatic actuator working pressure: 0.3~0.8MPa

Bottom connection: ISO 5211

Solenoid valve standard: Namur

Accessories of pneumatic actuator: limit switch box, solenoid valve, positioner.



Pneumatic Actuator Dimension



valves pneumatic rotary rack and pinion actuator black body orange caps colour



Model A B C D H×I G N J K L M Air connection
XMO32 110 45 45 20 50×25 12 9 Æ36   M5×7.5   G1/8"
XM040 122 60 65 20 80×30 14 11 Æ50 Æ36 M6×10 M5×7.5 NAMUR G1/4"
XM052 147 72 72 20 80×30 14 11 Æ50 Æ36 M6×10 M5×7.5 NAMUR G1/4"
XM063 172 88 83 20 80×30 18 14 Æ70 Æ50 M8×13 M6×10 NAMUR G1/4"
XM075 184 100 95 20 80×30 20 14 Æ70 Æ50 M8×13 M6×10 NAMUR G1/4"
XM083 204 109 103 20 80×30 21 17 Æ70 Æ50 M8×13 M6×10 NAMUR G1/4"
XM092 262 117 109 20 80×30 22 17 Æ70 Æ50 M8×13 M6×10 NAMUR G1/4"
XM105 268 133 121 20 80×30 26 22 Æ102 Æ70 M10×16 M8×13 NAMUR G1/4"
XM125 301 155 143 20 80×30 27 22 Æ102 Æ70 M10×16 M8×13 NAMUR G1/4"
XM140 394 173 152 20 80×30 32 27 Æ125 Æ102 M12×20 M10×16 NAMUR G1/4"
XM160 458 198 174 20 80×30 34 27 Æ125 Æ102 M12×20 M10×16 NAMUR G1/4"
XM190 528 232 206 30 130×30 40 36 Æ140   M16×24   NAMUR G1/4"
XM210 532 257 226 30 130×30 40 36 Æ140   M16×24   NAMUR G1/4"
XM240 660 291 260 30 130×30 50 46 Æ165   M20×25   NAMUR G1/4"
XM270 740 330 294 30 130×30 50 46 Æ165   M20×25   NAMUR G1/2"
XM300 798 354 336 30 130×30 60 46 Æ165   M20×25   NAMUR G1/2"
XM350 880 408 385 30 130×30 60 46 Æ165   M20×25   NAMUR G1/2"
XM400 950 464 516 30 130×30 60 55 Æ254 Æ165 8-M16×25 M20×25 NAMUR G1/2"












valves pneumatic rotary rack and pinion actuator black body orange caps colour
