electric pneumatic positioner YT1000R/L ACTUATOR TOP POSITIONER INDICATOR

Certification
Good quality Pneumatic Rotary Actuator for sales
Good quality Pneumatic Rotary Actuator for sales
I'm Online Chat Now

electric pneumatic positioner YT1000R/L ACTUATOR TOP POSITIONER INDICATOR

China electric pneumatic positioner YT1000R/L ACTUATOR TOP POSITIONER INDICATOR supplier
electric pneumatic positioner YT1000R/L ACTUATOR TOP POSITIONER INDICATOR supplier electric pneumatic positioner YT1000R/L ACTUATOR TOP POSITIONER INDICATOR supplier electric pneumatic positioner YT1000R/L ACTUATOR TOP POSITIONER INDICATOR supplier

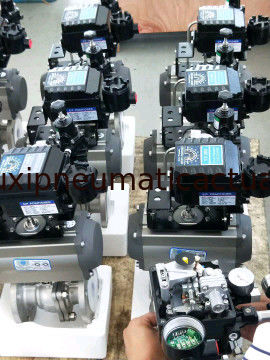

Large Image :  electric pneumatic positioner YT1000R/L ACTUATOR TOP POSITIONER INDICATOR

Product Details:

Place of Origin: Jiangsu
Brand Name: YT
Certification: CE ATEX
Model Number: 1000L/R

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 200USD per set
Packaging Details: cartoon box
Delivery Time: 3-5 work days
Payment Terms: T/T
Contact Now
Detailed Product Description
Input Signal: 4-20ma Supply Pressure: 1.4-7kgf/㎡(20-100psi)
Stroke: 10-105mm Explosion Proof: ExdIIBT6
Temperature: -20—70℃ Weight: 2.7KG-2.8KG

electric pneumatic positioner YT1000R/L ACTUATOR TOP POSITIONER INDICATOR

E/P positioner description:

  • Achieve CE Certificate
  • Pass explosion proof ( ExIa BT6,Exdm BT6,Exdm CT6)authentication
  • Pass Ip66 authentication
  • High anti-vibration (none effective in 5 to 200 Hz)
  • The linking of alr duct is perforated form, convenient for the linking in all direction
  • Convenient for the transform of positive action and counteraction
  • 1/2spllt range available by simple adjustments without changing parts
  • Easy maintenance
  • SImpie structure for feed back connection
  • Economical energy saving

YT-1000R series can have options of position transmitter (PTM), which outputs 4-20mA, and/or limit switch (L/S).

  1. - It is designed for high durability and performance in high vibration environment.
  2. - Durability has proven after testing of 1 million times minimum.
  3. - Response time is very short and accurate.
  4. - Simple part change can set 1/2 Split Range.
  5. - It is economical due to less air-consumption.
  6. - Direct/Reverse action can be set easily.
  7. - Zero & Span adjustment process is simply.
  8. - Feedback Connection is easy.
  9. electric pneumatic positioner YT1000R/L ACTUATOR TOP POSITIONER INDICATOR
