Product Details:
|
Metarial: | Extruded Aluminum Alloy Or Stainless Steel | Colour: | Black, Gray, Blue Or As Customers' Requirement |
---|---|---|---|
Application: | Ball Valve, Butterfly Valve | Connection: | ISO 5211,DIN 3337 |
Structure: | Rack And Pinion | Type: | Double Action Or Spring Return |
Degree: | 0-180 Custom Made | HS Code: | 841239000 |

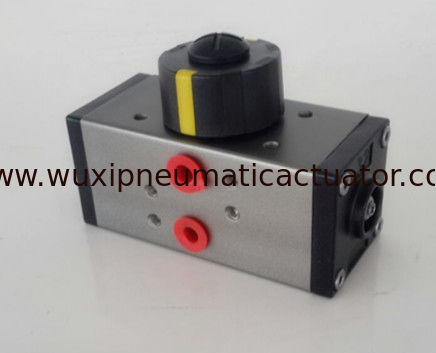

GT/AT 180 degree rack and pinion pneumatic rotary actuator custom made for valves
Pneumatic actuator
Material | Extruded Aluminum alloy |
Rotary Angle | 0~90 degree |
Structure | rack and pinion rotary actuator |
Working Pressure | 2~8bar |
Surface Treatment | hard anodizing |
Working Temperature | Normal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F); High Temperature: -15ºC(+5°F) ~ 150ºC (+302°F); Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F). |
Connection | NAMUR, ISO5211 and DIN3337 |
Application | ball valve, butterfly valve, and rotary machine |
Cup Color |
grey, black, sky blue, dark blue, red, orange |
Pneumatic actuators statement of usage and selection
XM AT series Pneumatic Actuator is made of dual pistons driven by racks and pinions. There are two models. One is Dual Acting model, and the other is Spring Return model, which can suit various flammable, corrosive, dusty, strong magnetic field, radiation, vibration corrosive environment indoor or outdoor.
Auto-control in the field of electric power, petrochemical, metallurgy, petroleum, gas, town, construction, drainage, chemical industry, oil refining, mining, power plant, metallurgy, architecture, medicine, food, gas, scientific research, etc.
-1). Our design, material and size are definitely accord with ISO9001:2008, CE Certificate and ATEX Certificate.
-2). Our piston is treated thermal quenching to obtain better strength and prolong using life.
-3). The surface of our actuator body is treated hard anoidizing to against rust and scratch.
-4). We provide with OEM service
-5). Strict quality control
-6). Better quality at a better price
-7). Excellent After-service.
-8). Fast delivery time
