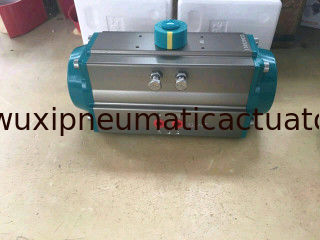

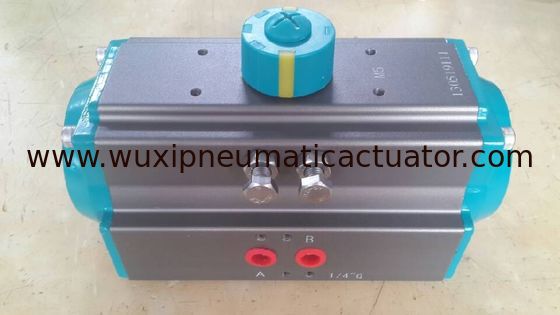

Aluminum Alloy 90 Degree 5021 Colour Pneumatic Rotary Actuator

Aluminum Alloy 90 Degree 5021 Colour  Pneumatic Rotary Actuator
Aluminum Alloy 90 Degree 5021 Colour  Pneumatic Rotary Actuator Aluminum Alloy 90 Degree 5021 Colour  Pneumatic Rotary Actuator Aluminum Alloy 90 Degree 5021 Colour  Pneumatic Rotary Actuator

Large Image :  Aluminum Alloy 90 Degree 5021 Colour Pneumatic Rotary Actuator

Product Details:
Place of Origin: Jiangsu, China
Brand Name: xm
Certification: CE,ATEX,ISO,SGS
Model Number: DA,SR
Payment & Shipping Terms:
Minimum Order Quantity: 20
Packaging Details: 1) foam packing inside,one carton box outside 2) then put all carton box in one strong plywood case for sea transport
Delivery Time: 3-15days
Supply Ability: 5000 sets per month

Aluminum Alloy 90 Degree 5021 Colour Pneumatic Rotary Actuator

Description
Metarial: Extruded Aluminum Alloy Colour: 5021 Or As Customers' Requirement
Application: Ball Valve, Butterfly Valve Connection: ISO 5211,DIN 3337
Structure: Rack And Pinion Type: Double Action And Single Action
Product Name: Aluminum Alloy 90 Degree 5021 Colour Pneumatic Rotary Actuator Degree: 90

Aluminum Alloy 90 Degree 5021 Colour Pneumatic Rotary Actuator





Pneumatic actuator


Material Extruded Aluminum alloy
Rotary Angle 0~90 degree
Structure rack and pinion rotary actuator
Working Pressure 2~8bar
Surface Treatment hard anodizing
Working Temperature Normal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F);

High Temperature: -15ºC(+5°F) ~ 150ºC (+302°F);

Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F).
Connection NAMUR, ISO5211 and DIN3337
Application ball valve, butterfly valve, and rotary machine
Cup Color grey, black, sky blue, dark blue, red, orange




Dimension


Aluminum Alloy 90 Degree 5021 Colour  Pneumatic Rotary Actuator 0



Model A B C D H×I G N J K L M Air connection
XMO32 110 45 45 20 50×25 12 9 Æ36   M5×7.5   G1/8"
XM040 122 60 65 20 80×30 14 11 Æ50 Æ36 M6×10 M5×7.5 NAMUR G1/4"
XM052 147 72 72 20 80×30 14 11 Æ50 Æ36 M6×10 M5×7.5 NAMUR G1/4"
XM063 172 88 83 20 80×30 18 14 Æ70 Æ50 M8×13 M6×10 NAMUR G1/4"
XM075 184 100 95 20 80×30 20 14 Æ70 Æ50 M8×13 M6×10 NAMUR G1/4"
XM083 204 109 103 20 80×30 21 17 Æ70 Æ50 M8×13 M6×10 NAMUR G1/4"
XM092 262 117 109 20 80×30 22 17 Æ70 Æ50 M8×13 M6×10 NAMUR G1/4"
XM105 268 133 121 20 80×30 26 22 Æ102 Æ70 M10×16 M8×13 NAMUR G1/4"
XM125 301 155 143 20 80×30 27 22 Æ102 Æ70 M10×16 M8×13 NAMUR G1/4"
XM140 394 173 152 20 80×30 32 27 Æ125 Æ102 M12×20 M10×16 NAMUR G1/4"
XM160 458 198 174 20 80×30 34 27 Æ125 Æ102 M12×20 M10×16 NAMUR G1/4"
XM190 528 232 206 30 130×30 40 36 Æ140   M16×24   NAMUR G1/4"
XM210 532 257 226 30 130×30 40 36 Æ140   M16×24   NAMUR G1/4"
XM240 660 291 260 30 130×30 50 46 Æ165   M20×25   NAMUR G1/4"
XM270 740 330 294 30 130×30 50 46 Æ165   M20×25   NAMUR G1/2"
XM300 798 354 336 30 130×30 60 46 Æ165   M20×25   NAMUR G1/2"
XM350 880 408 385 30 130×30 60 46 Æ165   M20×25   NAMUR G1/2"
XM400 950 464 516 30 130×30 60 55 Æ254 Æ165 8-M16×25 M20×25 NAMUR G1/2"



Main Features

-1). Our design, material and size are definitely accord with ISO9001:2008, CE Certificate and ATEX Certificate.
-2). Our piston is treated thermal quenching to obtain better strength and prolong using life.
-3). The surface of our actuator body is treated hard anoidizing to against rust and scratch.

-4). We provide with OEM service

-5). Strict quality control
-6). Better quality at a better price
-7). Excellent After-service.
-8). Fast delivery time




Certifications

Aluminum Alloy 90 Degree 5021 Colour  Pneumatic Rotary Actuator 1Aluminum Alloy 90 Degree 5021 Colour  Pneumatic Rotary Actuator 2Aluminum Alloy 90 Degree 5021 Colour  Pneumatic Rotary Actuator 3


Aluminum Alloy 90 Degree 5021 Colour  Pneumatic Rotary Actuator 4
