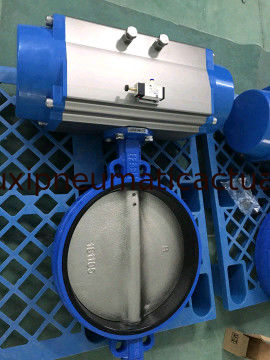

Large Image :  Rotary Actuator Pneumatic Operated Butterfly Valves Pneumatic Butterfly Valves

Product Details:
Place of Origin: Jiangsu, China
Brand Name: xm
Certification: CE,ATEX,ISO,SGS
Model Number: DA,SR
Payment & Shipping Terms:
Minimum Order Quantity: 20
Packaging Details: 1) foam packing inside,one carton box outside 2) then put all carton box in one strong plywood case for sea transport
Delivery Time: 3-15days
Supply Ability: 5000 sets per month

Rotary Actuator Pneumatic Operated Butterfly Valves Pneumatic Butterfly Valves

Description
Metarial: Extruded Aluminum Alloy Colour: Black, Gray, Blue, Or As Customers' Requirement
Application: Ball Valve, Butterfly Valve Connection: ISO 5211,DIN 3337
Structure: Rack And Pinion Type: Double Action And Single Action
Product Name: Rotary Actuator Pneumatic Operated Butterfly Valves Pneumatic Butterfly Valves

Rotary Actuator Pneumatic Operated Butterfly Valves Pneumatic Butterfly Valves





Pneumatic Actuator


Material Extruded Aluminum alloy
Rotary Angle 0~90 degree
Structure rack and pinion rotary actuator
Working Pressure 2~8bar
Surface Treatment hard anodizing
Working Temperature Normal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F);

High Temperature: -15ºC(+5°F) ~ 150ºC (+302°F);

Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F).
Connection NAMUR, ISO5211 and DIN3337
Application ball valve, butterfly valve, and rotary machine
Cup Color grey, black, sky blue, dark blue, red, orange



Main Features

part and material.jpg

  1. Dual piston rack and pinion design for compact construction,symmetric mounting positon,high-cycle life and fast opeation,reverse rotaton can be accomplished in the field by simply inverting the pistons.
  2. Multiple bearings and guides on racks and pistons,low friction,high cycle life and prevent shaft blowout.
  3. Modular preloaded spring cartridge design.with coated spring for simply versatile range,greater safely and corroson resistance, longer cycle life.
  4. Fully machined teech on piston and pinion for accurate low backlash rack and pinion engagement,maximum efficiency.
  5. Stainless steel fasteners for long term corrosion resistance.
  6. Fullconformance to the latest specification;ISO5211.DIN3337 and Namur or product interchange ability and easy mounting of solenoids, limit switches and other accesories.

Rotary Actuator Pneumatic Operated Butterfly Valves Pneumatic Butterfly Valves 1Rotary Actuator Pneumatic Operated Butterfly Valves Pneumatic Butterfly Valves 2

Rotary Actuator Pneumatic Operated Butterfly Valves Pneumatic Butterfly Valves 3


Product Application

AT series Pneumatic Actuator is made of dual pistons driven by racks and pinions. There are two models. One is Dual Acting model, and the other is Spring Return model, which can suit various flammable, corrosive, dusty, strong magnetic field, radiation, vibration corrosive environment indoor or outdoor.

Auto-control in the field of electric power, petrochemical, metallurgy, petroleum, gas, town, construction, drainage, chemical industry, oil refining, mining, power plant, metallurgy, architecture, medicine, food, gas, scientific research, etc.

Rotary Actuator Pneumatic Operated Butterfly Valves Pneumatic Butterfly Valves 4
Rotary Actuator Pneumatic Operated Butterfly Valves Pneumatic Butterfly Valves 5
