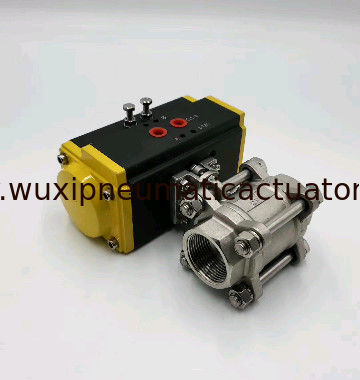

Large Image :  ATUADOR PNEUMATICO Single Acting pneumatic actuator Spring Return AT series actuator

Product Details:
Place of Origin: Jiangsu, China
Brand Name: OEM,ODM
Certification: CE,ATEX,ISO,SGS
Model Number: DA,SR
Payment & Shipping Terms:
Minimum Order Quantity: 20
Packaging Details: 1) foam packing inside,one carton box outside 2) then put all carton box in one strong plywood case for sea transport
Delivery Time: 3-15days
Supply Ability: 5000 sets per month

ATUADOR PNEUMATICO Single Acting pneumatic actuator Spring Return AT series actuator

Description
Product Name: ATUADOR PNEUMATICO Single Acting Spring Return AT Series Actuator Colour: Black, Gray, Blue, Or As Customers' Requirement
Application: Ball Valve, Butterfly Valve Connection: ISO 5211,DIN 3337
Structure: Rack And Pinion Type: Double Action And Single Action
Usage: Pneumatic Actuator Control For Valves Metarial: Aluminum Alloy
Size: 32-400

ATUADOR PNEUMATICO Single Acting pneumatic actuator Spring Return AT series actuator



Pneumatic Actuator


Material Extruded Aluminum alloy
Rotary Angle 0~90 degree
Structure rack and pinion rotary actuator
Working Pressure 2~8bar
Surface Treatment hard anodizing
Working Temperature Normal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F);

High Temperature: -15ºC(+5°F) ~ 150ºC (+302°F);

Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F).
Connection NAMUR, ISO5211 and DIN3337
Application ball valve, butterfly valve, and rotary machine
Cup Color grey, black, sky blue, dark blue, red, orange





Pneumatic Actuator Design Feature



  • Through research development and design AT series pneumatic actuators incorporate the latest technology materials and innovative idea. The product proudly boasts the following features.
  • Full conformance to the latest specifications: ISO5211,DIN3337 and VDINDE-3854,NAMUR.
  • The extruding high intensity aluminum body possesses a honed internal surface coated with hard anode oxygenation for long life. Low coefficient of friction and swift performance.

  • Excellent compact and modernized construction along with multi specifications makes the selection both economic and beneficial.

  • All acting surface adopt high quality bearing resulting in low friction, high cycle life, and no noise

  • The two independent external stroke adjustment bolts can easily and precisely adjust ±5°at both open and close directions.

  • Same outline actuators have the functional modes of double acting and single acting (Spring -Return). The Spring-Return has the normally-open and normally-close styles.

  • Multi function indicator with NAMUR is convenient for mounting accessories.

  • Pre-compressed load spring is convenient for safe mounting and tear down procedures.

  • Die-casting aluminum pistons and end caps have high intensity and light weight.

  • Different O-rings materials are available for high and low temperature.

  • Solenoid valves are easily mounted without any connecting plank.



Product Application



AT series Pneumatic Actuator is made of dual pistons driven by racks and pinions. There are two models. One is Dual Acting model, and the other is Spring Return model, which can suit various flammable, corrosive, dusty, strong magnetic field, radiation, vibration corrosive environment indoor or outdoor.


Auto-control in the field of electric power, petrochemical, metallurgy, petroleum, gas, town, construction, drainage, chemical industry, oil refining, mining, power plant, metallurgy, architecture, medicine, food, gas, scientific research, etc.
