Product Details:
|
Body Metarial: | Extruded Aluminum Alloy ASTM6005 | Colour: | Black, Gray, Blue, Yellow Or As Customers' Requirement |
---|---|---|---|
Application: | Ball Valve, Butterfly Valve | Connection: | NAMUR,ISO 5211,DIN 3337 |
Structure: | Rack And Pinion | Actuator Type: | Double Acting And Single Acting(spring Return) |
Product Name: | Double Action Single Action Rotary Pneumatic Actuator Actuador Neumtico CE ATEX Certificate | Size: | 32,40,52,63,75,83,92,105,125,140,160,190,210,240,270,300,350,400 |
Surface Material: | Hard Anodized 25- 35μm | Rotary Angle: | Standard Stroke 0-90±5° |
Warranty: | 1 Year |

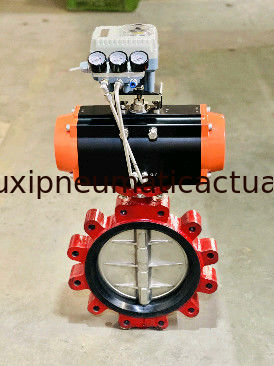

Double action single action rotary pneumatic actuator actuador neumtico CE ATEX certificate
Pneumatic actuator
Material | Extruded Aluminum alloy |
Rotary Angle | 0~90 degree |
Structure | rack and pinion rotary actuator |
Working Pressure | 2~8bar |
Surface Treatment | hard anodizing |
Working Temperature | Normal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F); High Temperature: -15ºC(+5°F) ~ 150ºC (+302°F); Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F). |
Connection | NAMUR, ISO5211 and DIN3337 |
Application | ball valve, butterfly valve, and rotary machine |
Cup Color | grey, black, sky blue, dark blue, red, orange |
AT series pneumatic actuators statement of usage and selection
Through research development and design AT series pneumatic actuators incorporate the latest technology materials and innovative idea. The product proudly boasts the following features.
Full conformance to the latest specifications: ISO5211,DIN3337 and VDINDE-3854,NAMUR.
The extruding high intensity aluminum body possesses a honed internal surface coated with hard anode oxygenation for long life. Low coefficient of friction and swift performance.
Excellent compact and modernized construction along with multi specifications makes the selection both economic and beneficial.
All acting surface adopt high quality bearing resulting in low friction, high cycle life, and no noise
The two independent external stroke adjustment bolts can easily and precisely adjust ±5°at both open and close directions.
Same outline actuators have the functional modes of double acting and single acting (Spring -Return). The Spring-Return has the normally-open and normally-close styles.
Multi function indicator with NAMUR is convenient for mounting accessories.
Pre-compressed load spring is convenient for safe mounting and tear down procedures.
Die-casting aluminum pistons and end caps have high intensity and light weight.
Different O-rings materials are available for high and low temperature.
Solenoid valves are easily mounted without any connecting plank.
Pneumatic rotary actuator are greatly used in ball valve and butterfly valve.
Low cost, compact design, long working life.
Pneumatic actuator type: single acting (spring return) or double acting.
Color: orange, blue, black, dark gray. we accept OEM colors and brand.
Pneumatic actuator working pressure: 0.3~0.8MPa
Bottom connection: ISO 5211
Solenoid valve standard: Namur
Accessories of pneumatic actuator: limit switch box, solenoid valve, positioner.
Model | A | B | C | D | H×I | G | N | J | K | L | M | Air connection |
AT032 | 110 | 45 | 45 | 20 | 50×25 | 12 | 9 | Æ36 | M5×7.5 |
G1/8" |
||
AT040 | 122 | 60 | 65 | 20 | 80×30 | 14 | 11 | Æ50 | Æ36 | M6×10 | M5×7.5 | NAMUR G1/4" |
AT052 | 147 | 72 | 72 | 20 | 80×30 | 14 | 11 | Æ50 | Æ36 | M6×10 | M5×7.5 | NAMUR G1/4" |
AT063 | 172 | 88 | 83 | 20 | 80×30 | 18 | 14 | Æ70 | Æ50 | M8×13 | M6×10 | NAMUR G1/4" |
AT075 | 184 | 100 | 95 | 20 | 80×30 | 20 | 14 | Æ70 | Æ50 | M8×13 | M6×10 | NAMUR G1/4" |
AT083 | 204 | 109 | 103 | 20 | 80×30 | 21 | 17 | Æ70 | Æ50 | M8×13 | M6×10 | NAMUR G1/4" |
AT092 | 262 | 117 | 109 | 20 | 80×30 | 22 | 17 | Æ70 | Æ50 | M8×13 | M6×10 | NAMUR G1/4" |
AT105 | 268 | 133 | 121 | 20 | 80×30 | 26 | 22 | Æ102 | Æ70 | M10×16 | M8×13 | NAMUR G1/4" |
AT125 | 301 | 155 | 143 | 20 | 80×30 | 27 | 22 | Æ102 | Æ70 | M10×16 | M8×13 | NAMUR G1/4" |
AT140 | 394 | 173 | 152 | 20 | 80×30 | 32 | 27 | Æ125 | Æ102 | M12×20 | M10×16 | NAMUR G1/4" |
AT160 | 458 | 198 | 174 | 20 | 80×30 | 34 | 27 | Æ125 | Æ102 | M12×20 | M10×16 | NAMUR G1/4" |
AT190 | 528 | 232 | 206 | 30 | 130×30 | 40 | 36 | Æ140 | M16×24 | NAMUR G1/4" | ||
AT210 | 532 | 257 | 226 | 30 | 130×30 | 40 | 36 | Æ140 | M16×24 | NAMUR G1/4" | ||
AT240 | 660 | 291 | 260 | 30 | 130×30 | 50 | 46 | Æ165 | M20×25 | NAMUR G1/4" | ||
AT270 | 740 | 330 | 294 | 30 | 130×30 | 50 | 46 | Æ165 | M20×25 | NAMUR G1/2" | ||
AT300 | 798 | 354 | 336 | 30 | 130×30 | 60 | 46 | Æ165 | M20×25 | NAMUR G1/2" | ||
AT350 | 880 | 408 | 385 | 30 | 130×30 | 60 | 46 | Æ165 | M20×25 | NAMUR G1/2" | ||
AT400 | 950 | 464 | 516 | 30 | 130×30 | 60 | 55 | Æ254 | Æ165 | 8-M16×25 | M20×25 | NAMUR G1/2" |
