Rack and Pinion Aluminum Pneumatic Rotary Actuator Control Butterfly Valves

Large Image : Rack and Pinion Aluminum Pneumatic Rotary Actuator Control Butterfly Valves

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	xm
Certification:	CE,ATEX,ISO,SGS
Model Number:	DA,SR

Payment & Shipping Terms:

Minimum Order Quantity:	20
Packaging Details:	1) foam packing inside,one carton box outside 2) then put all carton box in one strong plywood case for sea transport
Delivery Time:	3-15days
Supply Ability:	5000 sets per month

Contact Now

Rack and Pinion Aluminum Pneumatic Rotary Actuator Control Butterfly Valves

Description

Metarial:	Extruded Aluminum Alloy	Colour:	Black, Gray, Blue, Or As Customers' Requirement
Application:	Ball Valve, Butterfly Valve	Connection:	ISO 5211,DIN 3337
Structure:	Rack And Pinion	Type:	Double Action And Single Action
Product Name:	Rack And Pinion Aluminum Pneumatic Rotary Actuator Control Butterfly Valves

Rack and Pinion Aluminum Pneumatic Rotary Actuator Control Butterfly Valves

Pneumatic Actuator

Material	Extruded Aluminum alloy
Rotary Angle	0~90 degree
Structure	rack and pinion rotary actuator
Working Pressure	2~8bar
Surface Treatment	hard anodizing
Working Temperature	Normal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F); High Temperature: -15ºC(+5°F) ~ 150ºC (+302°F); Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F).
Connection	NAMUR, ISO5211 and DIN3337
Application	ball valve, butterfly valve, and rotary machine
Cup Color	grey, black, sky blue, dark blue, red, orange

Main Features

Dual piston rack and pinion design for compact construction,symmetric mounting positon,high-cycle life and fast opeation,reverse rotaton can be accomplished in the field by simply inverting the pistons.
Multiple bearings and guides on racks and pistons,low friction,high cycle life and prevent shaft blowout.
Modular preloaded spring cartridge design.with coated spring for simply versatile range,greater safely and corroson resistance, longer cycle life.
Fully machined teech on piston and pinion for accurate low backlash rack and pinion engagement,maximum efficiency.
Stainless steel fasteners for long term corrosion resistance.
Fullconformance to the latest specification;ISO5211.DIN3337 and Namur or product interchange ability and easy mounting of solenoids, limit switches and other accesories.

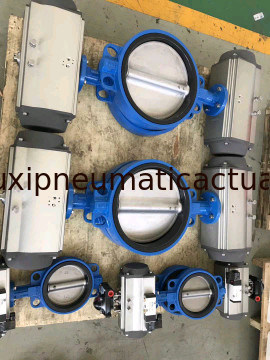

Rack and Pinion Aluminum Pneumatic Rotary Actuator Control Butterfly Valves 1

Product Application

AT series Pneumatic Actuator is made of dual pistons driven by racks and pinions. There are two models. One is Dual Acting model, and the other is Spring Return model, which can suit various flammable, corrosive, dusty, strong magnetic field, radiation, vibration corrosive environment indoor or outdoor.

Auto-control in the field of electric power, petrochemical, metallurgy, petroleum, gas, town, construction, drainage, chemical industry, oil refining, mining, power plant, metallurgy, architecture, medicine, food, gas, scientific research, etc.
