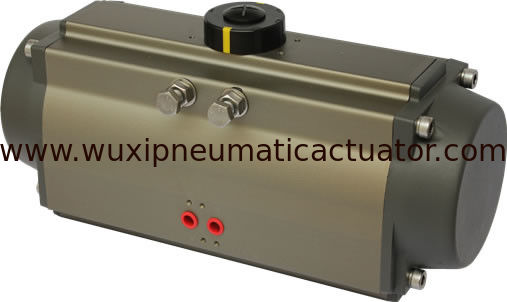

Large Image :  pneumatic rotary actuator pneumatic cylinder air cylinder piston

Product Details:
Place of Origin: Jiangsu, China
Brand Name: AT
Certification: CE,ATEX,ISO,SGS
Model Number: DA,SR
Payment & Shipping Terms:
Minimum Order Quantity: 20
Packaging Details: 1) foam packing inside,one carton box outside 2) then put all carton box in one strong plywood case for sea transport
Delivery Time: 3-15days
Supply Ability: 5000 sets per month

pneumatic rotary actuator pneumatic cylinder air cylinder piston

Description
Metarial: Extruded Aluminum Alloy Colour: Black, Gray, Blue, Or As Customers' Requirement
Application: Ball Valve, Butterfly Valve Connection: ISO 5211,DIN 3337
Structure: Rack And Pinion Type: Double Action And Single Action
Usage: Pneumatic Rotary Actuators Control For Valve Product Name: Pneumatic Rotary Actuator Pneumatic Cylinder Air Cylinder Piston
Size: 32 To 400 Angle Of Rotation: 90° ±5°

pneumatic rotary actuator pneumatic cylinder air cylinder piston



Pneumatic actuator


Material Extruded Aluminum alloy
Rotary Angle 0~90 degree
Structure rack and pinion rotary actuator
Working Pressure 2~8bar
Surface Treatment hard anodizing
Working Temperature Normal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F);

High Temperature: -15ºC(+5°F) ~ 150ºC (+302°F);

Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F).
Connection NAMUR, ISO5211 and DIN3337
Application ball valve, butterfly valve, and rotary machine
Cup Color grey, black, sky blue, dark blue, red, orange



Main Features



I. Actuator Body

Boy material is aluminium alloy. Internal and external surface are treated with anodic oxidation and polishing. Outer surface is nickle plated so that the anti-corrosion fuction of actuator and minimum friction against pistons can be guaranteed.



II. End Cover

End cover material is die-casting aluminium. End cover is treated with epoxy polyester so as to best guarantee the anti-corrosion performance.



III. Drive Shaft

The drive shaft material is medium carbon steel with fine processing and nickle plating so that the pistons have better quality in anti-corrosion, anti-friction, etc.



IV. Piston

Piston material is die-casting aluminium alloy. Maxmium torque can be output when the actuator is actuated with certain pressure.



V. Piston Seal

NBR-70 rubber sealing is applied to ensure the normal and reliable performance of actuator under normal temperature. FPM can be also applied according to clients' requirements.



VI. Travel Adjustment

Plus/Mimus 5 degree travel can be adjusted through the two bolts.


Pneumatic Actuator Dimension



pneumatic rotary actuator pneumatic cylinder air cylinder piston 0



Model A B C D H×I G N J K L M Air connection
XMO32 110 45 45 20 50×25 12 9 Æ36   M5×7.5   G1/8"
XM040 122 60 65 20 80×30 14 11 Æ50 Æ36 M6×10 M5×7.5 NAMUR G1/4"
XM052 147 72 72 20 80×30 14 11 Æ50 Æ36 M6×10 M5×7.5 NAMUR G1/4"
XM063 172 88 83 20 80×30 18 14 Æ70 Æ50 M8×13 M6×10 NAMUR G1/4"
XM075 184 100 95 20 80×30 20 14 Æ70 Æ50 M8×13 M6×10 NAMUR G1/4"
XM083 204 109 103 20 80×30 21 17 Æ70 Æ50 M8×13 M6×10 NAMUR G1/4"
XM092 262 117 109 20 80×30 22 17 Æ70 Æ50 M8×13 M6×10 NAMUR G1/4"
XM105 268 133 121 20 80×30 26 22 Æ102 Æ70 M10×16 M8×13 NAMUR G1/4"
XM125 301 155 143 20 80×30 27 22 Æ102 Æ70 M10×16 M8×13 NAMUR G1/4"
XM140 394 173 152 20 80×30 32 27 Æ125 Æ102 M12×20 M10×16 NAMUR G1/4"
XM160 458 198 174 20 80×30 34 27 Æ125 Æ102 M12×20 M10×16 NAMUR G1/4"
XM190 528 232 206 30 130×30 40 36 Æ140   M16×24   NAMUR G1/4"
XM210 532 257 226 30 130×30 40 36 Æ140   M16×24   NAMUR G1/4"
XM240 660 291 260 30 130×30 50 46 Æ165   M20×25   NAMUR G1/4"
XM270 740 330 294 30 130×30 50 46 Æ165   M20×25   NAMUR G1/2"
XM300 798 354 336 30 130×30 60 46 Æ165   M20×25   NAMUR G1/2"
XM350 880 408 385 30 130×30 60 46 Æ165   M20×25   NAMUR G1/2"
XM400 950 464 516 30 130×30 60 55 Æ254 Æ165 8-M16×25 M20×25 NAMUR G1/2"



AT series pneumatic actuators statement of usage and selection



Through research development and design XM series pneumatic actuators incorporate the latest technology materials and innovative idea. The product proudly boasts the following features.

Full conformance to the latest specifications: ISO5211,DIN3337 and VDINDE-3854,NAMUR.

The extruding high intensity aluminum body possesses a honed internal surface coated with hard anode oxygenation for long life. Low coefficient of friction and swift performance.

Excellent compact and modernized construction along with multi specifications makes the selection both economic and beneficial.

All acting surface adopt high quality bearing resulting in low friction, high cycle life, and no noise

The two independent external stroke adjustment bolts can easily and precisely adjust ±5°at both open and close directions.

Same outline actuators have the functional modes of double acting and single acting (Spring -Return). The Spring-Return has the normally-open and normally-close styles.

Multi function indicator with NAMUR is convenient for mounting accessories.

Pre-compressed load spring is convenient for safe mounting and tear down procedures.

Die-casting aluminum pistons and end caps have high intensity and light weight.

Different O-rings materials are available for high and low temperature.

Solenoid valves are easily mounted without any connecting plank.
