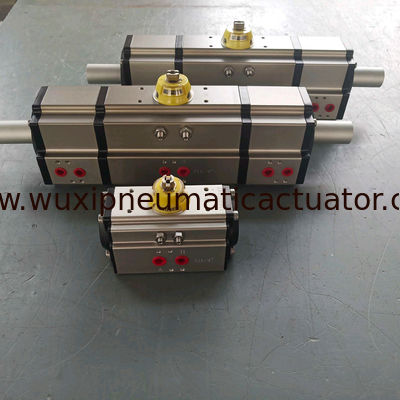

AT pneumatic rotary actuator with valve and switch box

AT pneumatic rotary actuator with valve and switch box
AT pneumatic rotary actuator with valve and switch box AT pneumatic rotary actuator with valve and switch box AT pneumatic rotary actuator with valve and switch box

Large Image :  AT pneumatic rotary actuator with valve and switch box

Product Details:
Place of Origin: Jiangsu, China
Brand Name: OEM
Certification: CE,ATEX,ISO,SGS
Model Number: DA,SR
Payment & Shipping Terms:
Minimum Order Quantity: 20
Packaging Details: 1) foam packing inside,one carton box outside 2) then put all carton box in one strong plywood case for sea transport
Delivery Time: 3-15days
Supply Ability: 5000 sets per month

AT pneumatic rotary actuator with valve and switch box

Description
Metarial: Extruded Aluminum Alloy Colour: Black, Gray, Blue, Or As Customers' Requirement
Application: Ball Valve, Butterfly Valve Connection: ISO 5211,DIN 3337
Structure: Rack And Pinion Product Name: AT Pneumatic Rotary Actuator With Valve And Switch Box
Size: 32 To 400



AT pneumatic rotary actuator with valve and switch box





Pneumatic actuator


Material Extruded Aluminum alloy
Rotary Angle 0~90 degree
Structure rack and pinion rotary actuator
Working Pressure 2~8bar
Surface Treatment hard anodizing
Working Temperature Normal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F);

High Temperature: -15ºC(+5°F) ~ 150ºC (+302°F);

Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F).
Connection NAMUR, ISO5211 and DIN3337
Application ball valve, butterfly valve, and rotary machine
Cup Color grey, black, sky blue, dark blue, red, orange





AT series pneumatic actuators statement of usage and selection



Through research development and design XM series pneumatic actuators incorporate the latest technology materials and innovative idea. The product proudly boasts the following features.

Full conformance to the latest specifications: ISO5211,DIN3337 and VDINDE-3854,NAMUR.

The extruding high intensity aluminum body possesses a honed internal surface coated with hard anode oxygenation for long life. Low coefficient of friction and swift performance.

Excellent compact and modernized construction along with multi specifications makes the selection both economic and beneficial.

All acting surface adopt high quality bearing resulting in low friction, high cycle life, and no noise

The two independent external stroke adjustment bolts can easily and precisely adjust ±5°at both open and close directions.

Same outline actuators have the functional modes of double acting and single acting (Spring -Return). The Spring-Return has the normally-open and normally-close styles.

Multi function indicator with NAMUR is convenient for mounting accessories.

Pre-compressed load spring is convenient for safe mounting and tear down procedures.

Die-casting aluminum pistons and end caps have high intensity and light weight.

Different O-rings materials are available for high and low temperature.

Solenoid valves are easily mounted without any connecting plank.



Main Features

Pneumatic rotary actuator are greatly used in ball valve and butterfly valve.

Low cost, compact design, long working life.

Pneumatic actuator type: single acting (spring return) or double acting.

Color: orange, blue, black, dark gray. we accept OEM colors and brand.

Pneumatic actuator working pressure: 0.3~0.8MPa

Bottom connection: ISO 5211

Solenoid valve standard: Namur

Accessories of pneumatic actuator: limit switch box, solenoid valve, positioner.



Pneumatic Actuator Dimension



3 Way Pneumatic Ball valve,Three Stage Actuator Valve



Model A B C D H×I G N J K L M Air connection
AT032 110 45 45 20 50×25 12 9 Æ36   M5×7.5



G1/8"

AT040 122 60 65 20 80×30 14 11 Æ50 Æ36 M6×10 M5×7.5 NAMUR G1/4"
AT052 147 72 72 20 80×30 14 11 Æ50 Æ36 M6×10 M5×7.5 NAMUR G1/4"
AT063 172 88 83 20 80×30 18 14 Æ70 Æ50 M8×13 M6×10 NAMUR G1/4"
AT075 184 100 95 20 80×30 20 14 Æ70 Æ50 M8×13 M6×10 NAMUR G1/4"
AT083 204 109 103 20 80×30 21 17 Æ70 Æ50 M8×13 M6×10 NAMUR G1/4"
AT092 262 117 109 20 80×30 22 17 Æ70 Æ50 M8×13 M6×10 NAMUR G1/4"
AT105 268 133 121 20 80×30 26 22 Æ102 Æ70 M10×16 M8×13 NAMUR G1/4"
AT125 301 155 143 20 80×30 27 22 Æ102 Æ70 M10×16 M8×13 NAMUR G1/4"
AT140 394 173 152 20 80×30 32 27 Æ125 Æ102 M12×20 M10×16 NAMUR G1/4"
AT160 458 198 174 20 80×30 34 27 Æ125 Æ102 M12×20 M10×16 NAMUR G1/4"
AT190 528 232 206 30 130×30 40 36 Æ140   M16×24   NAMUR G1/4"
AT210 532 257 226 30 130×30 40 36 Æ140   M16×24   NAMUR G1/4"
AT240 660 291 260 30 130×30 50 46 Æ165   M20×25   NAMUR G1/4"
AT270 740 330 294 30 130×30 50 46 Æ165   M20×25   NAMUR G1/2"
AT300 798 354 336 30 130×30 60 46 Æ165   M20×25   NAMUR G1/2"
AT350 880 408 385 30 130×30 60 46 Æ165   M20×25   NAMUR G1/2"
AT400 950 464 516 30 130×30 60 55 Æ254 Æ165 8-M16×25 M20×25 NAMUR G1/2"
