air control double action or single action pneumatic rotary actuator for valves

air control double action  or single action  pneumatic  rotary actuator for valves
air control double action  or single action  pneumatic  rotary actuator for valves air control double action  or single action  pneumatic  rotary actuator for valves air control double action  or single action  pneumatic  rotary actuator for valves

Large Image :  air control double action or single action pneumatic rotary actuator for valves

Product Details:
Place of Origin: Jiangsu, China
Brand Name: xm
Certification: CE,ATEX,ISO,SGS
Model Number: DA,SR
Payment & Shipping Terms:
Minimum Order Quantity: 20
Packaging Details: 1) foam packing inside,one carton box outside 2) then put all carton box in one strong plywood case for sea transport
Delivery Time: 3-15days
Supply Ability: 5000 sets per month

air control double action or single action pneumatic rotary actuator for valves

Description
Metarial: Extruded Aluminum Alloy Colour: Black, Gray, Blue, Or As Customers' Requirement
Application: Ball Valve, Butterfly Valve Connection: ISO 5211,DIN 3337
Structure: Rack And Pinion Type: Double Action And Single Action
Product Name: Air Control Double Action Or Single Action Pneumatic Rotary Actuator For Valves

air control double action or single action pneumatic rotary actuator for valves



Pneumatic actuator


Material Extruded Aluminum alloy
Rotary Angle 0~90 degree
Structure rack and pinion rotary actuator
Working Pressure 2~8bar
Surface Treatment hard anodizing
Working Temperature Normal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F);

High Temperature: -15ºC(+5°F) ~ 150ºC (+302°F);

Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F).
Connection NAMUR, ISO5211 and DIN3337
Application ball valve, butterfly valve, and rotary machine
Cup Color grey, black, sky blue, dark blue, red, orange







air control double action  or single action  pneumatic  rotary actuator for valves 0air control double action  or single action  pneumatic  rotary actuator for valves 1


Product Application

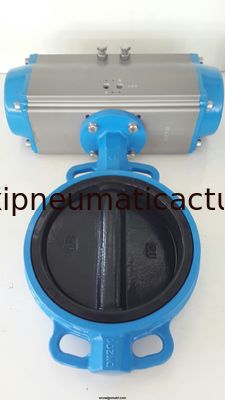

XM AT series Pneumatic Actuator is made of dual pistons driven by racks and pinions. There are two models. One is Dual Acting model, and the other is Spring Return model, which can suit various flammable, corrosive, dusty, strong magnetic field, radiation, vibration corrosive environment indoor or outdoor.


Application


Auto-control in the field of electric power, petrochemical, metallurgy, petroleum, gas, town, construction, drainage, chemical industry, oil refining, mining, power plant, metallurgy, architecture, medicine, food, gas, scientific research, etc.

air control double action  or single action  pneumatic  rotary actuator for valves 2
air control double action  or single action  pneumatic  rotary actuator for valves 3
