Product Details:
|
| Metarial: | Extruded Aluminum Alloy | Colour: | Black, Gray, Blue, Or As Customers' Requirement |
|---|---|---|---|
| Application: | Ball Valve, Butterfly Valve | Connection: | ISO 5211,DIN 3337 |
| Structure: | Rack And Pinion | Type: | Double Action And Single Action |
| Product Name: | ATEX Double Action Or Single Action Rack And Pinion Pneumatic Rotary Actuator For Butterfly And Ball Valves | Size: | 32 To 400 |

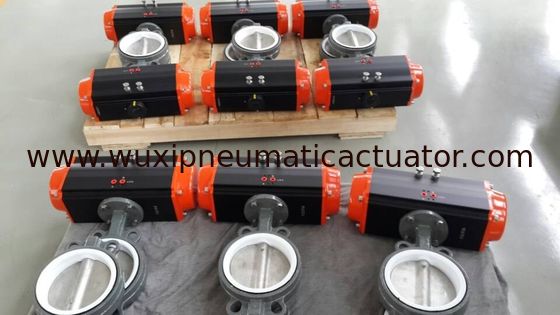

ATEX double action or single action rack and pinion pneumatic rotary actuator for butterfly and ball valves
Our advantage:
1. CE and ISO certificate
2. Strictly quality control
3. Good quality at a favorable price
4. Excellent After-service
5. Fast delivery time
| Material | Extruded Aluminum alloy |
| Rotary Angle | 0~90 degree |
| Structure | rack and pinion rotary actuator |
| Working Pressure | 2~8bar |
| Surface Treatment | hard anodizing |
| Working Temperature | Normal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F); High Temperature: -15ºC(+5°F) ~ 150ºC (+302°F); Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F). |
| Connection | NAMUR, ISO5211 and DIN3337 |
| Application | ball valve, butterfly valve, and rotary machine |
| Cup Color | grey, black, sky blue, dark blue, red, orange |
AT series pneumatic actuators statement of usage and selection
The extruding high intensity aluminum body possesses a honed internal surface coated with hard anode oxygenation for long life. Low coefficient of friction and swift performance.
Excellent compact and modernized construction along with multi specifications makes the selection both economic and beneficial.
All acting surface adopt high quality bearing resulting in low friction, high cycle life, and no noise
The two independent external stroke adjustment bolts can easily and precisely adjust ±5°at both open and close directions.
Same outline actuators have the functional modes of double acting and single acting (Spring -Return). The Spring-Return has the normally-open and normally-close styles.
Multi function indicator with NAMUR is convenient for mounting accessories.
Pre-compressed load spring is convenient for safe mounting and tear down procedures.
Die-casting aluminum pistons and end caps have high intensity and light weight.
Different O-rings materials are available for high and low temperature.
AT series Pneumatic Actuator is made of dual pistons driven by racks and pinions. There are two models. One is Dual Acting model, and the other is Spring Return model, which can suit various flammable, corrosive, dusty, strong magnetic field, radiation, vibration corrosive environment indoor or outdoor.
