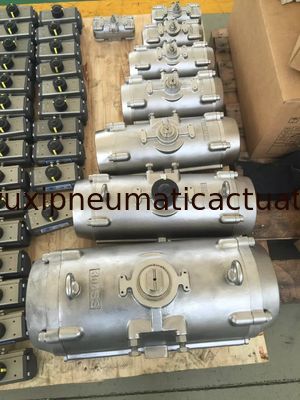

Home ProductsStainless Steel Pneumatic Actuator

stainless steel SS304/SS316 body pneumatic rotary actuators for butterfly valves ball valves

Certification
China Wuxi XM Auto-Control Valves Industry Co.,Ltd certification
China Wuxi XM Auto-Control Valves Industry Co.,Ltd certification
I'm Online Chat Now

stainless steel SS304/SS316 body pneumatic rotary actuators for butterfly valves ball valves

stainless steel SS304/SS316 body pneumatic rotary actuators for butterfly valves ball valves
stainless steel SS304/SS316 body pneumatic rotary actuators for butterfly valves ball valves stainless steel SS304/SS316 body pneumatic rotary actuators for butterfly valves ball valves stainless steel SS304/SS316 body pneumatic rotary actuators for butterfly valves ball valves

Large Image :  stainless steel SS304/SS316 body pneumatic rotary actuators for butterfly valves ball valves

Product Details:
Place of Origin: Jiangsu, China
Brand Name: OEM
Certification: CE,ATEX,ISO,SGS
Model Number: DA,SR
Payment & Shipping Terms:
Minimum Order Quantity: 20
Packaging Details: 1) foam packing inside,one carton box outside 2) then put all carton box in one strong plywood case for sea transport
Delivery Time: 3-15days
Supply Ability: 5000 sets per month

stainless steel SS304/SS316 body pneumatic rotary actuators for butterfly valves ball valves

Description
Metarial: Extruded Aluminum Alloy Colour: Black, Gray, Blue, Or As Customers' Requirement
Application: Ball Valve, Butterfly Valve Connection: ISO 5211,DIN 3337
Structure: Rack And Pinion Type: Double Action And Single Action
Size: 52 To 210

stainless steel SS304/SS316 body pneumatic rotary actuators for butterfly valves ball valves

1. CE and ISO certificate
2. Strictly quality control
3. Good quality at a favorable price
4. Excellent After-service
5. Fast delivery time



Our advantage:
1. We are the factory.
2. We will test your order products every by one before packing.
3. We have the technical to offer OEM service

Material Extruded Aluminum alloy
Rotary Angle 0~90 degree
Structure rack and pinion rotary actuator
Working Pressure 2~8bar
Surface Treatment hard anodizing
Working Temperature Normal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F);

High Temperature: -15ºC(+5°F) ~ 150ºC (+302°F);

Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F).
Connection NAMUR, ISO5211 and DIN3337
Application ball valve, butterfly valve, and rotary machine
Cup Color grey, black, sky blue, dark blue, red, orange







Product Description

pneumatic rotary actuator

AT series DA(double acting) and SR(Spring Return) Pneumatic Actuators are mainly for Pneumatic Butterfly Valve and Pneumatic Ball Valve.







AT series pneumatic actuators statement of usage and selection

  • Through research development and design AT series pneumatic actuators incorporate the latest technology materials and innovative idea. The product proudly boasts the following features.
  • Full conformance to the latest specifications: ISO5211,DIN3337 and VDINDE-3854,NAMUR.
  • The extruding high intensity aluminum body possesses a honed internal surface coated with hard anode oxygenation for long life. Low coefficient of friction and swift performance.

  • Excellent compact and modernized construction along with multi specifications makes the selection both economic and beneficial.

  • All acting surface adopt high quality bearing resulting in low friction, high cycle life, and no noise

  • The two independent external stroke adjustment bolts can easily and precisely adjust ±5°at both open and close directions.

  • Same outline actuators have the functional modes of double acting and single acting (Spring -Return). The Spring-Return has the normally-open and normally-close styles.

  • Multi function indicator with NAMUR is convenient for mounting accessories.

  • Pre-compressed load spring is convenient for safe mounting and tear down procedures.

  • Die-casting aluminum pistons and end caps have high intensity and light weight.

  • Different O-rings materials are available for high and low temperature.

  • Solenoid valves are easily mounted without any connecting plank.stainless steel SS304/SS316 body pneumatic rotary actuators for butterfly valves ball valves 0stainless steel SS304/SS316 body pneumatic rotary actuators for butterfly valves ball valves 1
    Product Application


    XM AT series Pneumatic Actuator is made of dual pistons driven by racks and pinions. There are two models. One is Dual Acting model, and the other is Spring Return model, which can suit various flammable, corrosive, dusty, strong magnetic field, radiation, vibration corrosive environment indoor or outdoor.


    Application
    Auto-control in the field of electric power, petrochemical, metallurgy, petroleum, gas, town, construction, drainage, chemical industry, oil refining, mining, power plant, metallurgy, architecture, medicine, food, gas, scientific research, etc.
    stainless steel SS304/SS316 body pneumatic rotary actuators for butterfly valves ball valves 2
    stainless steel SS304/SS316 body pneumatic rotary actuators for butterfly valves ball valves 3


    Main Features

    -1). Our design, material and size are definitely accord with ISO9001:2008, CE Certificate and ATEX Certificate.
    -2). Our piston is treated thermal quenching to obtain better strength and prolong using life.
    -3). The surface of our actuator body is treated hard anoidizing to against rust and scratch.

    -4). We provide with OEM service

    -5). Strict quality control
    -6). Better quality at a better price
    -7). Excellent After-service.
    -8). Fast delivery time



    Certifications
    stainless steel SS304/SS316 body pneumatic rotary actuators for butterfly valves ball valves 4stainless steel SS304/SS316 body pneumatic rotary actuators for butterfly valves ball valves 5stainless steel SS304/SS316 body pneumatic rotary actuators for butterfly valves ball valves 6


    Valve Actuators

    Name: DA/SR Pneumatic Actuator

    Brand: XM

    Original: CHINA

    Big output torque, accurate rotary angle, bigger angle adjustable range.





    Our Service

    Pre-Sales Service

    * Inquiry and consulting support.

    * Sample testing support.

    * View our Factory.

    After-Sales Service

    * Training how to instal the machine, training how to use the machine.

    * Engineers available to service machinery overseas.



    Packing & Delivery

    stainless steel SS304/SS316 body pneumatic rotary actuators for butterfly valves ball valves 7
    Packaging
    Size
    54 (L) * 23 (W) * 28 (D)
    Weight
    24kg



    Packaging Details
    The normal package is carton(Size: L*W*H).
    If LCL, the pallet and wooden box will be available.
    If FCL, the container would be available.
    stainless steel SS304/SS316 body pneumatic rotary actuators for butterfly valves ball valves 8
    Packaging
    Size
    125(L)*114(W)*130(H)
    Weight
    850kg



    Packaging Details
    If LCL, the pallet and wooden box will be available.
    If FCL, the container would be available.
